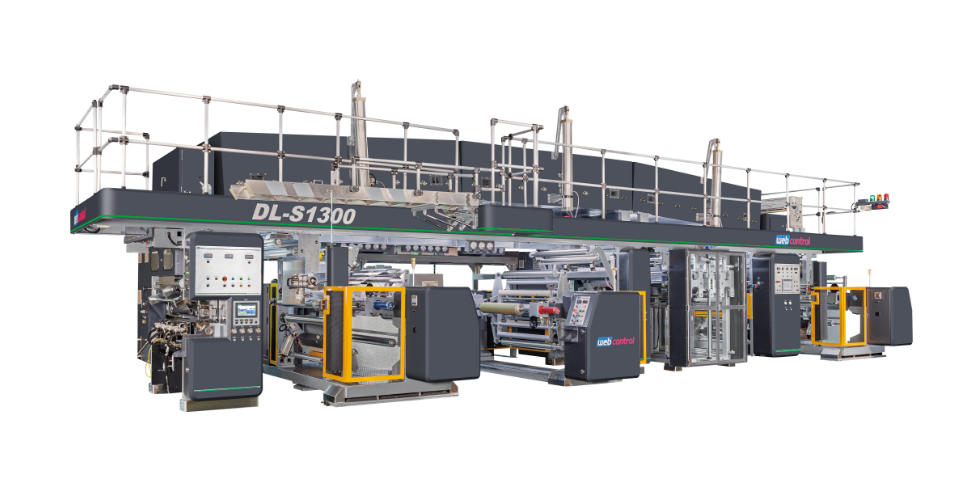

R2R Solventless Laminating Machine
Best Choice for the 1st Solventless Laminator
Introduction
The solventless laminating machine utilizes a two-component adhesive, making the production process more eco-friendly by eliminating the use of solvents.
The machine features precise and proportional speed control in the coating section, ensuring consistent coat weight throughout production. The innovative sleeve design for the transfer roller simplifies operation and maintenance. Integrated real-time coat weight detection helps minimize risks and waste during setup. Additionally, a detailed production report is automatically generated after each job, facilitating effective quality control management.
This solventless laminating machine is a preferred choice for manufacturers seeking efficiency, sustainability, and high-quality output.
Applications
- Apply for lamination of flexible packaging, such as food, pharmaceuticals, personal care & cosmetics, agriculture, and other consumer goods.
- Supporting sustainable solutions with solventless technology for environmentally conscious brands.
Features
- Faster Setup: Shaftless roll handling system allows quicker and easier loading and alignment of materials.
- Sleeve Design for Transfer Rollers: Simplifies operation and enhances efficiency.
- Precise Speed Control: Proportional and accurate speed regulation in the coating section ensures consistent coat weight throughout production.
- Cost Savings: Precise tension control and an optional coating weight detection system minimize material wastage.
Specification
| Unwind Width | 800 / 1000 / 1300 mm |
| Min. Unwind Width | 300 / 400 / 500 mm |
| Max. Coating Width | 800 / 1000 / 1300 mm |
| Min. Coating Width | 280 / 380 / 480 mm |
| 1st Unwind Diameter | 800 mm |
| 2nd Unwind Diameter | 800 mm |
| Rewind Diameter | 800 / 1000 mm |
| Unwind Paper Core ID | 3” (76 mm) & 6” (152 mm) |
| Rewind Paper Core ID | 6” (152 mm) |
| Machine Speed | 400 m/min |
Adding the optional RC System real-time coat weight measuring solution cuts setup risk and raw material waste, and the machine automatically generates a production report after every batch for quality management. This equipment is backed by more than 3,000 global installations in over 80 countries, built to CE (EU) and UL (US) certification, and supported by our in-house R&D, software development, and remote global service.
A: Webcontrol Machinery Corp. builds proportional speed control into the LME Series coating section, so adhesive weight stays uniform at every operating speed up to 400 m/min. With the optional RC System coat weight measuring solution, the line runs continuous real-time monitoring and closed-loop control, which cuts setup risk and material waste. Each batch closes out with an automatically generated production report, giving your quality team full traceability.
A: Webcontrol Machinery Corp. builds the LME Series to run unwind paper cores at 3 inch (76mm) and 6 inch (152mm) inner diameters, with a 6 inch (152mm) rewind paper core, across unwind and maximum coating widths of 800mm, 1000mm, and 1300mm. The transfer roller's sleeve design simplifies routine maintenance and speeds up roller changes during job switchovers. Every machine meets CE (EU) and UL (US) safety standards and is backed by our global agent network and remote troubleshooting support.
